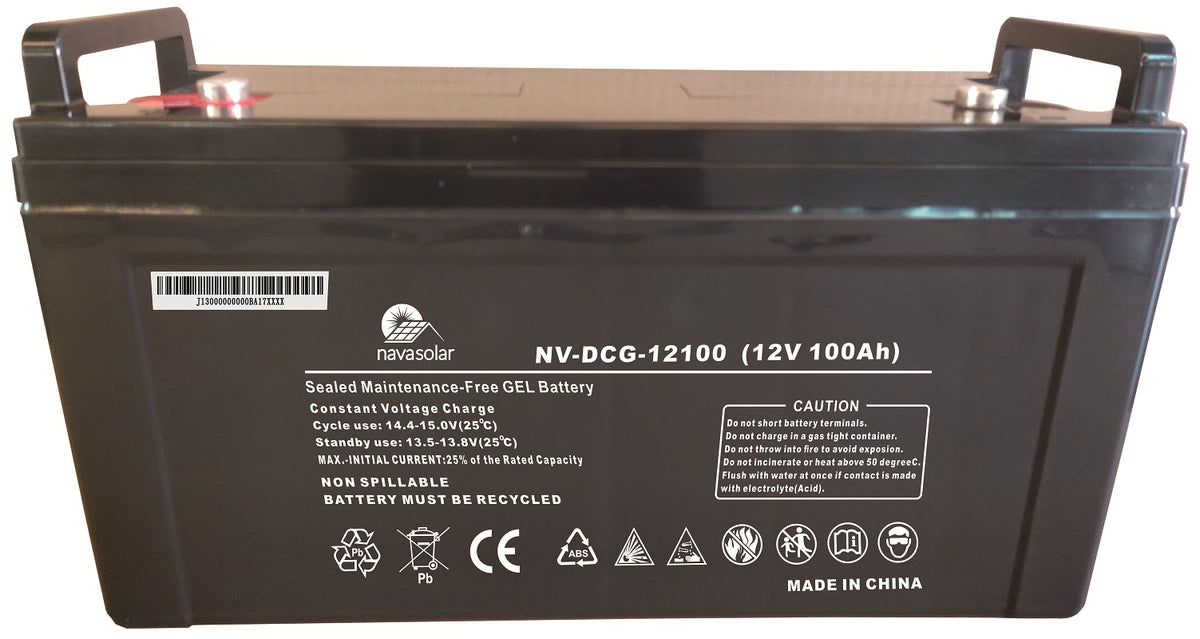

Navasolar Deep Cycle Gel VRLA 12V 100AH Battery

Navasolar

6-FM-100J

Gel Battery Series



Please note: Match inverter specifications with charging specification of the battery.





Specifications:

Nominal Voltage: 12V

Rated Capacity (20 hour rate): 100Ah

Total Height (with terminals): 8.62 inches(219mm)

Height: 8.35 inches(212mm)

Length: 15.98 inches(406mm)

Width: 6.81 inches(173mm)

Weight: Approx.67.8 Pound(30.8kg)



Characteristics:

Capacity 25 c

20 hour rate (5.0A) 100 Ah

10 hour rate (9.20A) 92 Ah

5 hour rate (16.0A) 80 Ah

1 hour rate (60.0A) 60 Ah
15 Minute Rate (164A) 41 Ah



Internal Resistance:

Full charged Battery 25 c - 4.5M



Capacity affected by Temperature (20hour rate)

40 c: 102%

25 c 100%:

32
0 c 85%

-15 c : 65%



Self-Discharge 25 c

Capacity after 3 month storage: 91%

Capacity after 6 month storage: 81%

Capacity after 12 month storage: 60%



Max. Discharge Current 25 c

800A(5S)



Terminal:

M3



Charge (Constant Voltage) Float

Cycle

Initial Charging Current less than 30A

Voltage 14.4~14.7 V 25 c

Voltage 13.5~13.8V 25 c

What's in the box
1 x NV-DCG-12100 Gel Battery
