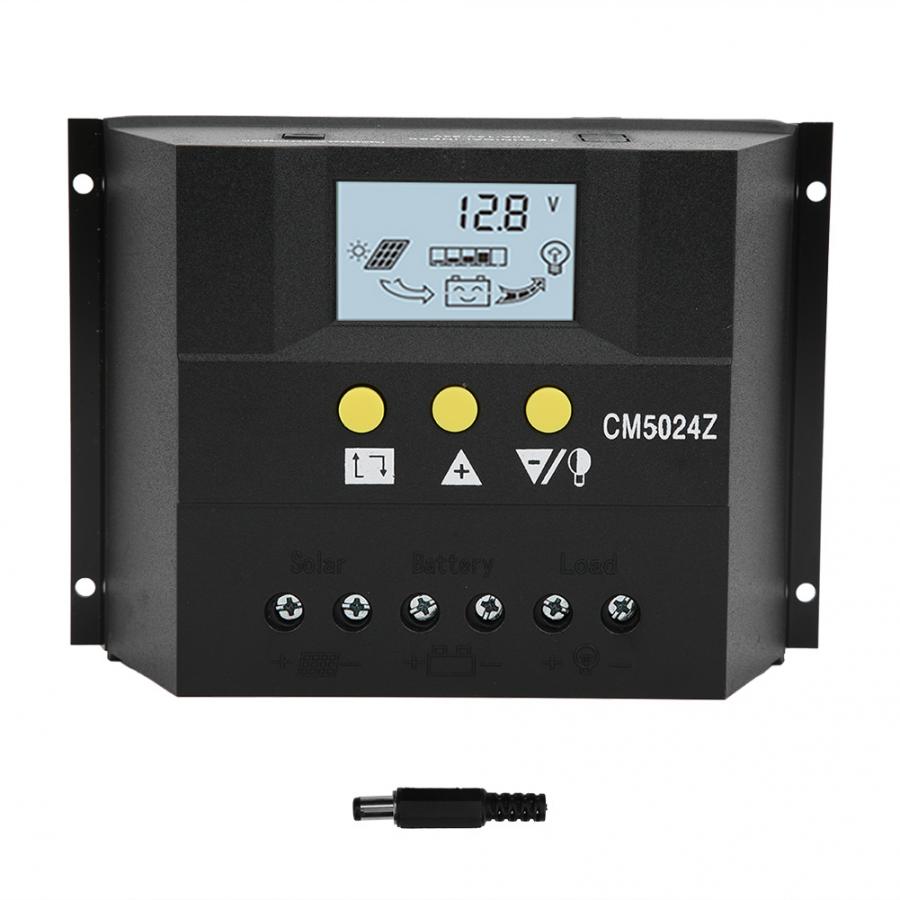

CM5024 12V24V50A Solar Charge Controller
CM5024 12V24V50A Solar Charge Controller
Regular price
R 900.00 ZAR
Regular price
Sale price
R 900.00 ZAR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
CM5024 12V24V50A Solar Charge Controller PWM Charger Regulator with Temperature Sensor
CM5024 12V24V50A Solar Charge Controller PWM Charger Regulator with Temperature Sensor
Specification:
Item Type: Solar Charge Controller
Standard: CM5024
Rated Voltage: 12V/24V Lead Acid Battery Voltage
Maximum Charge and Discharge Current: 50A
Solar Panel Input Voltage Range: 18V-800W/36V-1700W
Load Working Time Setting: 1-24 Hours Adjustable
Charging Mode: PWM
Overpressure Protection: 17V/34V
Full Disconnect: 13.7V/27.4V
Undervoltage Disconnection: 10.5V/21V
Over-Discharge Recovery Voltage: 12.2V/24.4V
No-Load Loss: No-Load Loss: ≤10mA, Loop Step-Down: ≤170mV, Temperature Compensation: -4nv/Cell/C
Wiring Specification: >3#AWG（25mm²）
Working Environment Temperature: -25℃ -55℃
Rated Voltage: 12V/24V Lead Acid Battery Voltage
Maximum Charge and Discharge Current: 50A
Solar Panel Input Voltage Range: 18V-800W/36V-1700W
Load Working Time Setting: 1-24 Hours Adjustable
Charging Mode: PWM
Overpressure Protection: 17V/34V
Full Disconnect: 13.7V/27.4V
Undervoltage Disconnection: 10.5V/21V
Over-Discharge Recovery Voltage: 12.2V/24.4V
No-Load Loss: No-Load Loss: ≤10mA, Loop Step-Down: ≤170mV, Temperature Compensation: -4nv/Cell/C
Wiring Specification: >3#AWG（25mm²）
Working Environment Temperature: -25℃ -55℃
Package List:
1 x Controller1 x Temperature Sens
